CDPS100-PL COVER Fork Carrier
Fork Carrier: Light and durable, using engineering plastics with excellent impact strength. Apply detachable radius pin, easily adjust radius by changing only radius pin. Also, it is a unique and smart carrier that can maximize the efficiency of material management. 3 Pin structure link pin(Radius) is excellent tension, the tensile strength is 20 percent better than other companies product. By strengthening the thickness and width of the cover and minimizing the contact surface of the cables and hoses, the products damage rate was reduced and the life of the cables and hoses is extended.

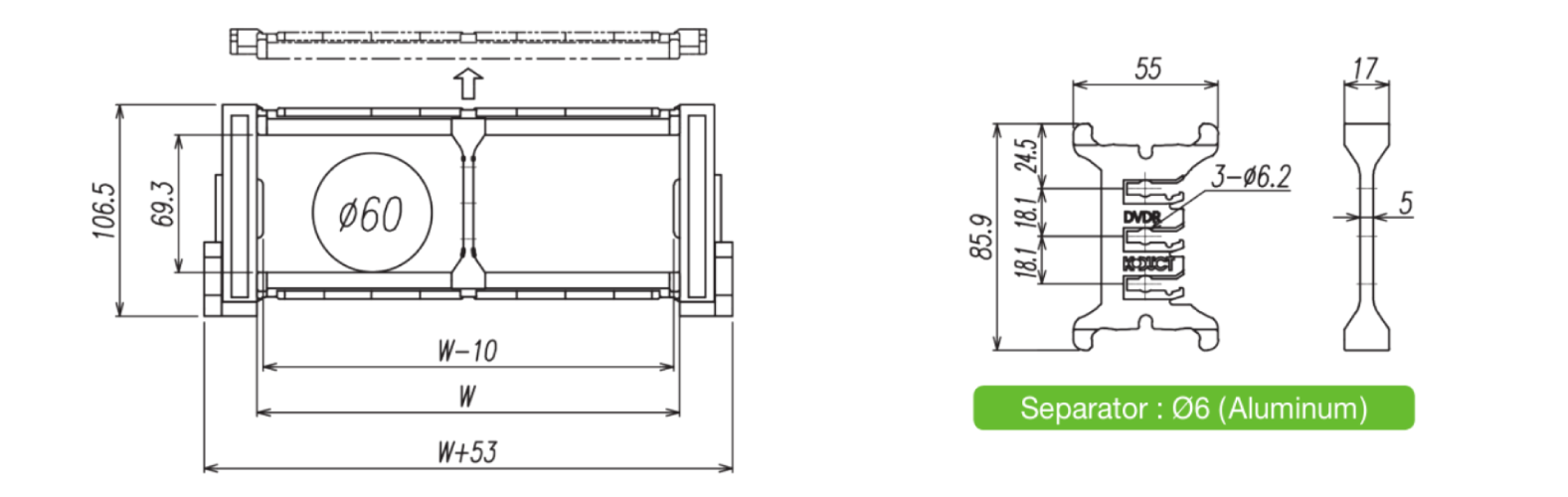

Fork Carrier : The divider is movable, not fixed. Put divider in the rail-type(bar or cover) structure. Divider structure is easy to moves left and right, it make not deviate from the divider due to the movement of the cable and easy to install cables
Applications : Goliath crane, Gantry robot, Machine tool, Welding machine, Cutting machine etc.

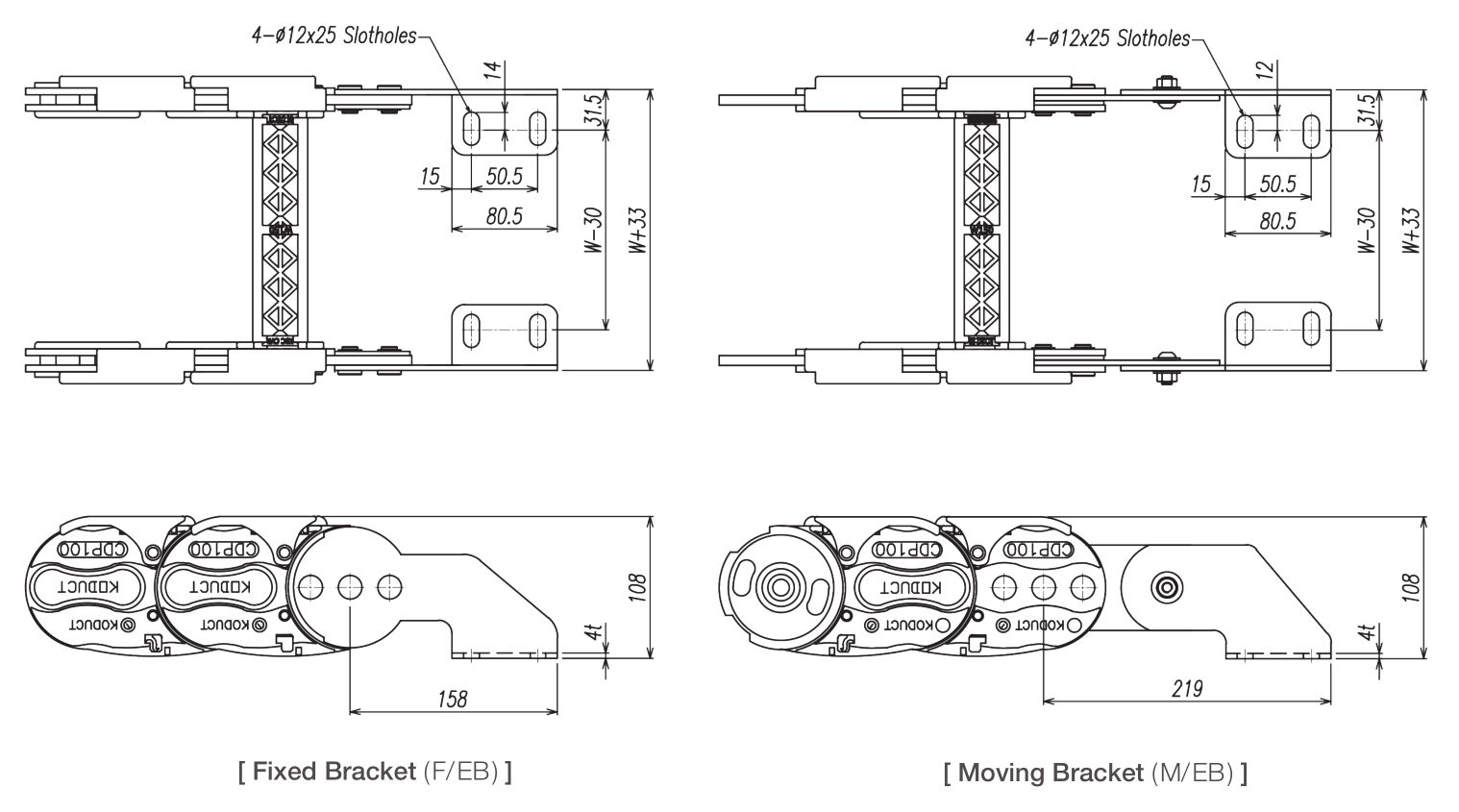

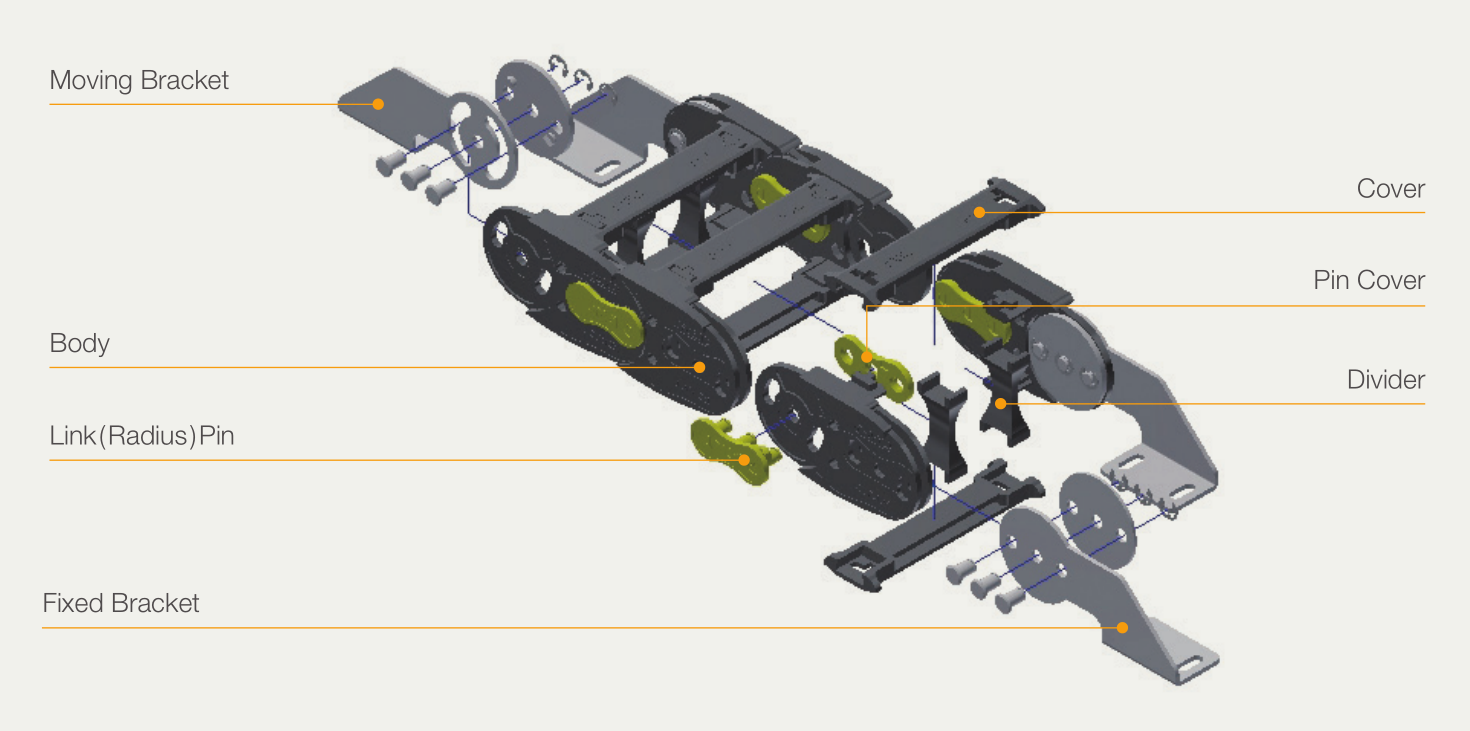

Structure :
End BRACKET
Carrier Link
Section A-A

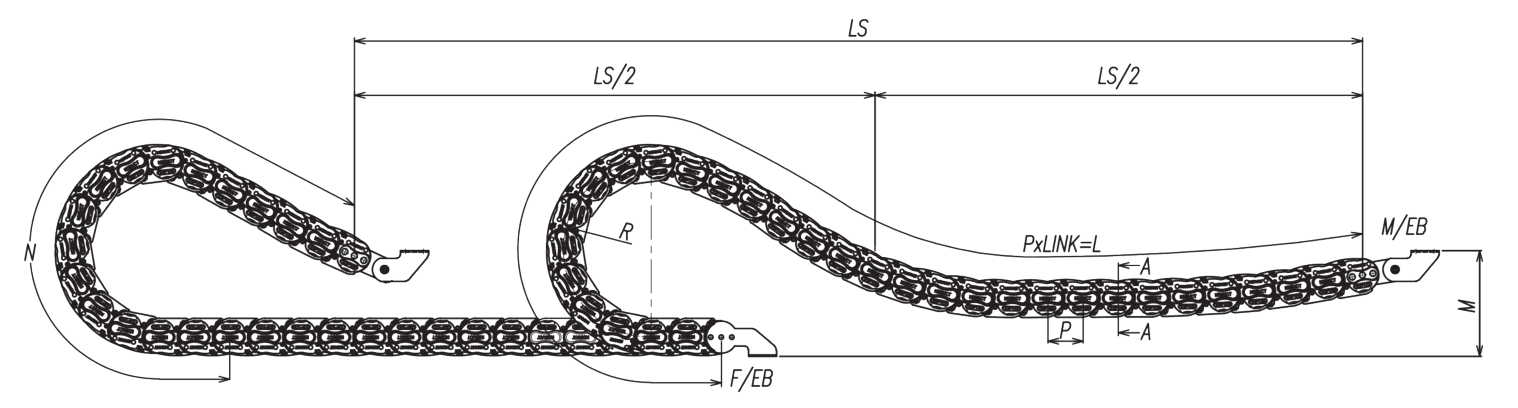

Specification
| Type | W | Radius | Pitch | M | N | DVDR | 1 m | EB Set |
| mm (inc) | mm (inc) | mm (inc) | mm (inc) | mm (inc) | (ea) | (kg) | (kg) | |
| CDPS100 | 100(3.937) | 200(7.874) 250(9.842) 300(11.811) 350(13.780) 400(15.748) 500(19.685) | 100 (3.937) | 300 (11.811) |
| 1 2 2 3 3 4 | 4.242 4.429 4.728 4.980 5.200 5.500 | 3.633 |
| 150(5.905) | ||||||||
| 200(7.874) | ||||||||
| 250(9.483) | ||||||||
| 300(11.811) | ||||||||
| 350(13.780) |
