KSC715/10(25) Smart Carrier
Smart Carrier : Light and durable, using engineering plastics with excellent impact strength. Apply detachable radius pin, easily adjust radius by changing only radius pin. Also, it is a unique and smart carrier that can maximize the efficiency of material management. Dual link-connecting structure, it provides excellent tension and durability
KP Carrier Small Type is body link structures that reduce sagging, and FreeSpan is improved by more than 20% compared to the same pitch and supports the link at the body inside and outside maximum points rather than the body middle point, thus improving the support force.
Smart Carrier curvature radius is made by external multi-Radius pins radius control protrusion, unlike existingmethod of curvature radius control in the body. The radius value can be freely replaced, and the Radius pin can b edisassembled and assembled on the outside of the body, making it easy to replace when selecting the wrong Radius. In addition, the assembly point is rigidly fastened with 3 to 5 points so that the Radius pin does not deviate from any impact.
Applications : Gantry robot equipment, Machine tool, Welding equipment, Cutting equipment etc.

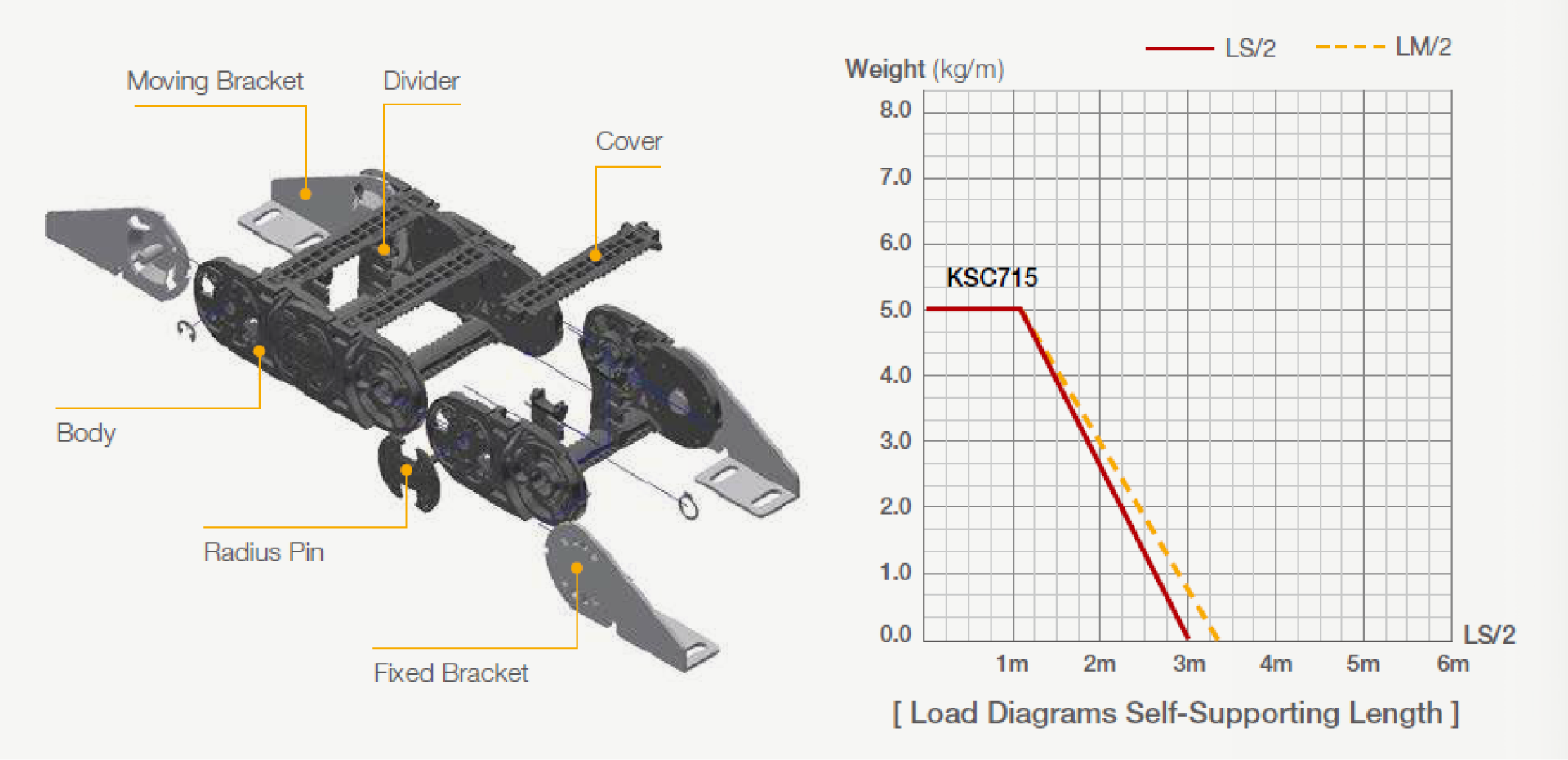

Structure:

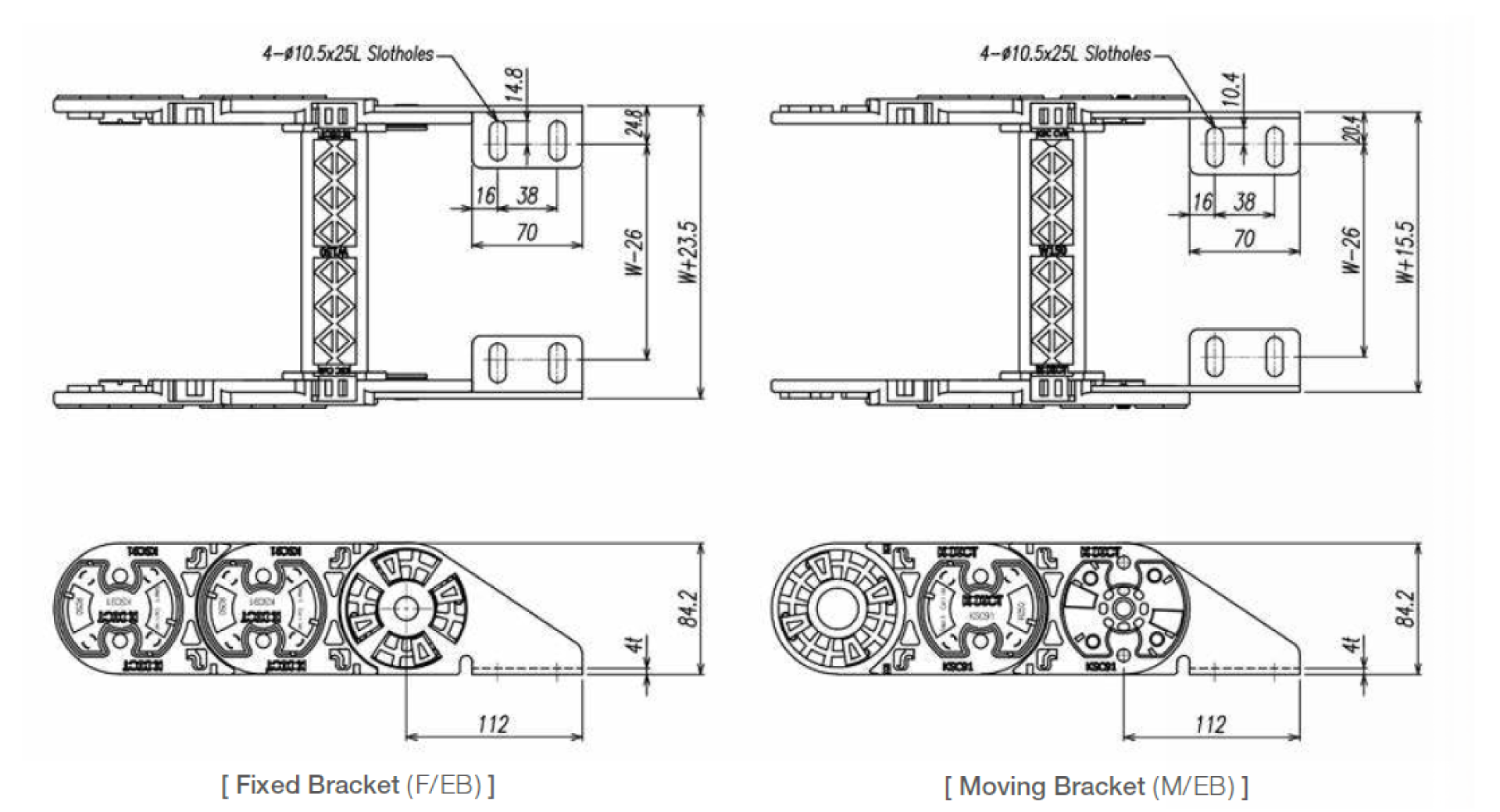

End BRACKET :

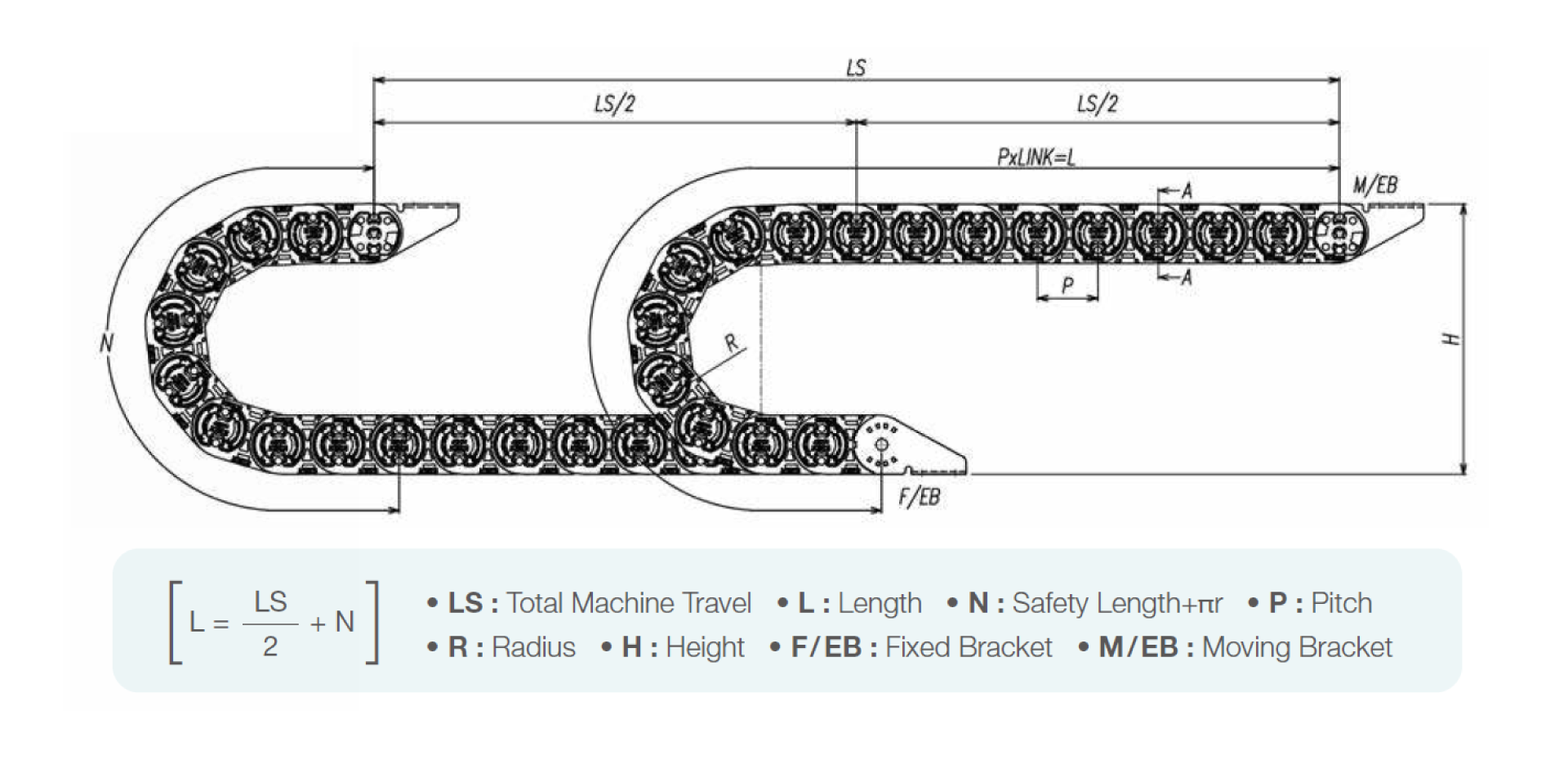

Carrier Link :

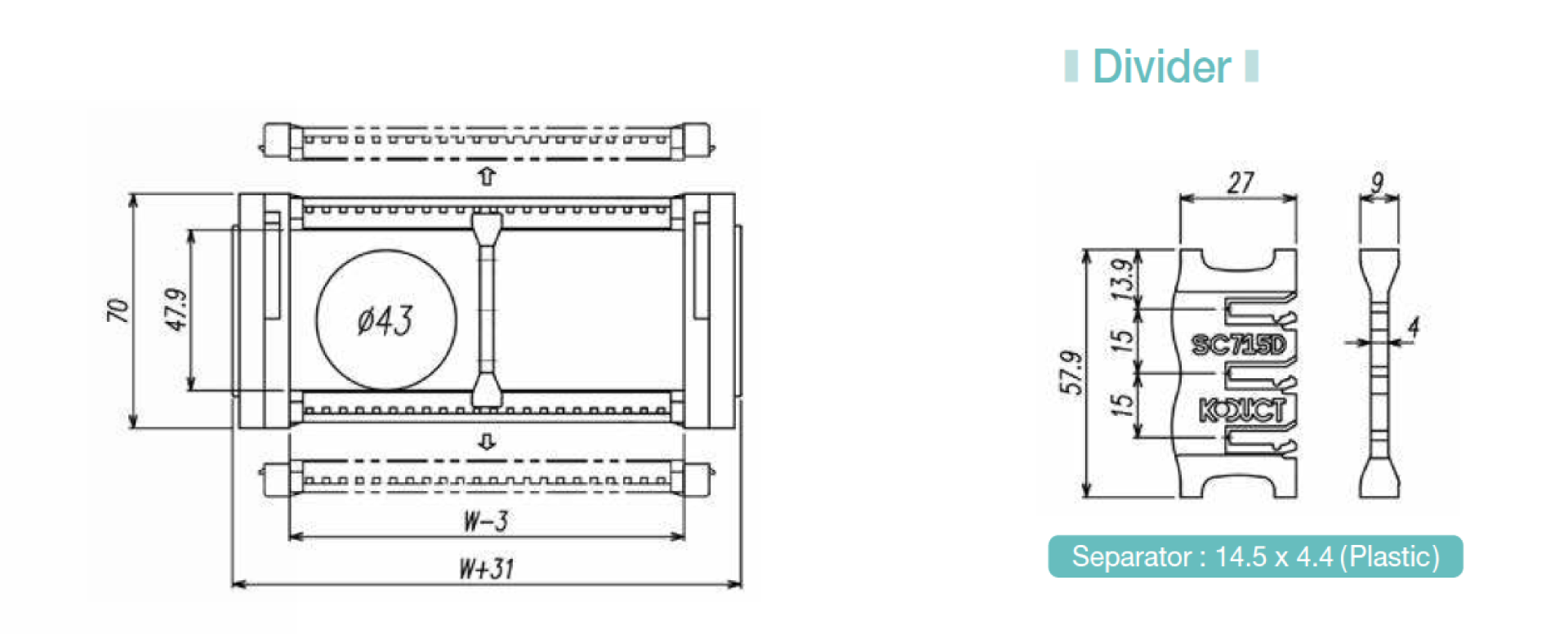

Section A-A

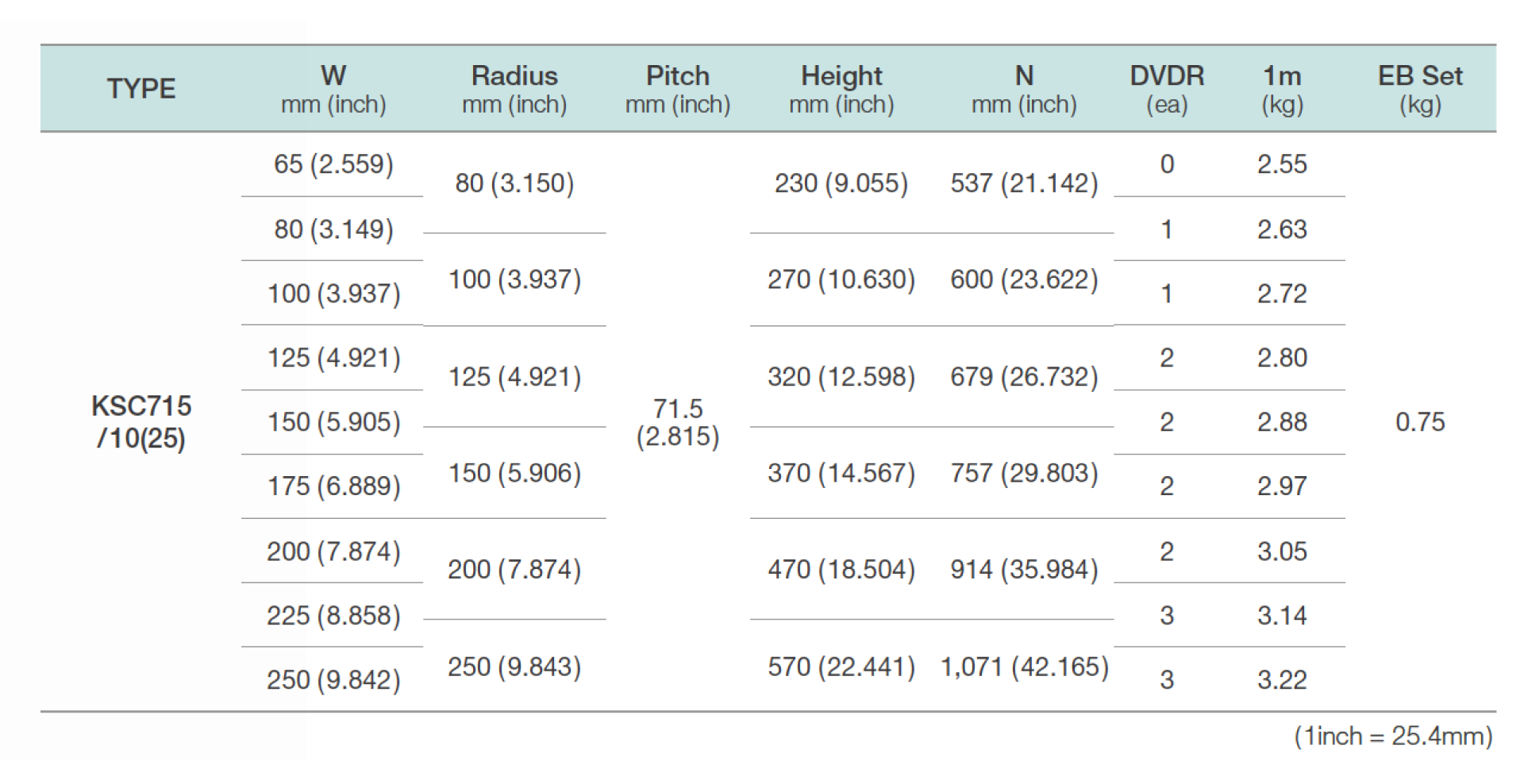

Specification :
