KE45-Eco-E Carrier

KE45 - Eco-E Carrier

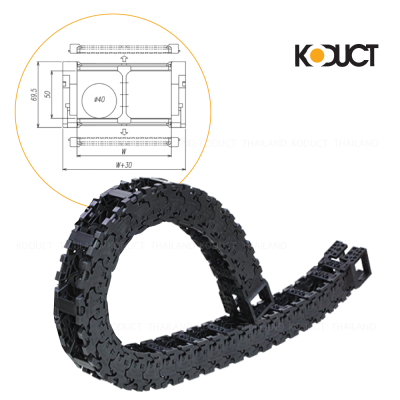

Eco-E Carrier :  ULow dust (Eco-E ) cable carriers make less than 30dB of noise and have a clean class of 1 with minimize dust and noise. It is suitable for semiconductor equipment as it is designed with body and link pin is elastic material that minimize noise and dust. Link and cover assembly is durable, so even left and right torsion rarely fall out link and is easy to assemble and disassemble. The link assembly structure maximum compensates sagging and maintains the same FreeSpan as the normal link assembly method
compared to the pitch.

Applications :  Clean room at a semiconductor plant & Equipment, Required for low-dust, low-noise cable carrier etc.

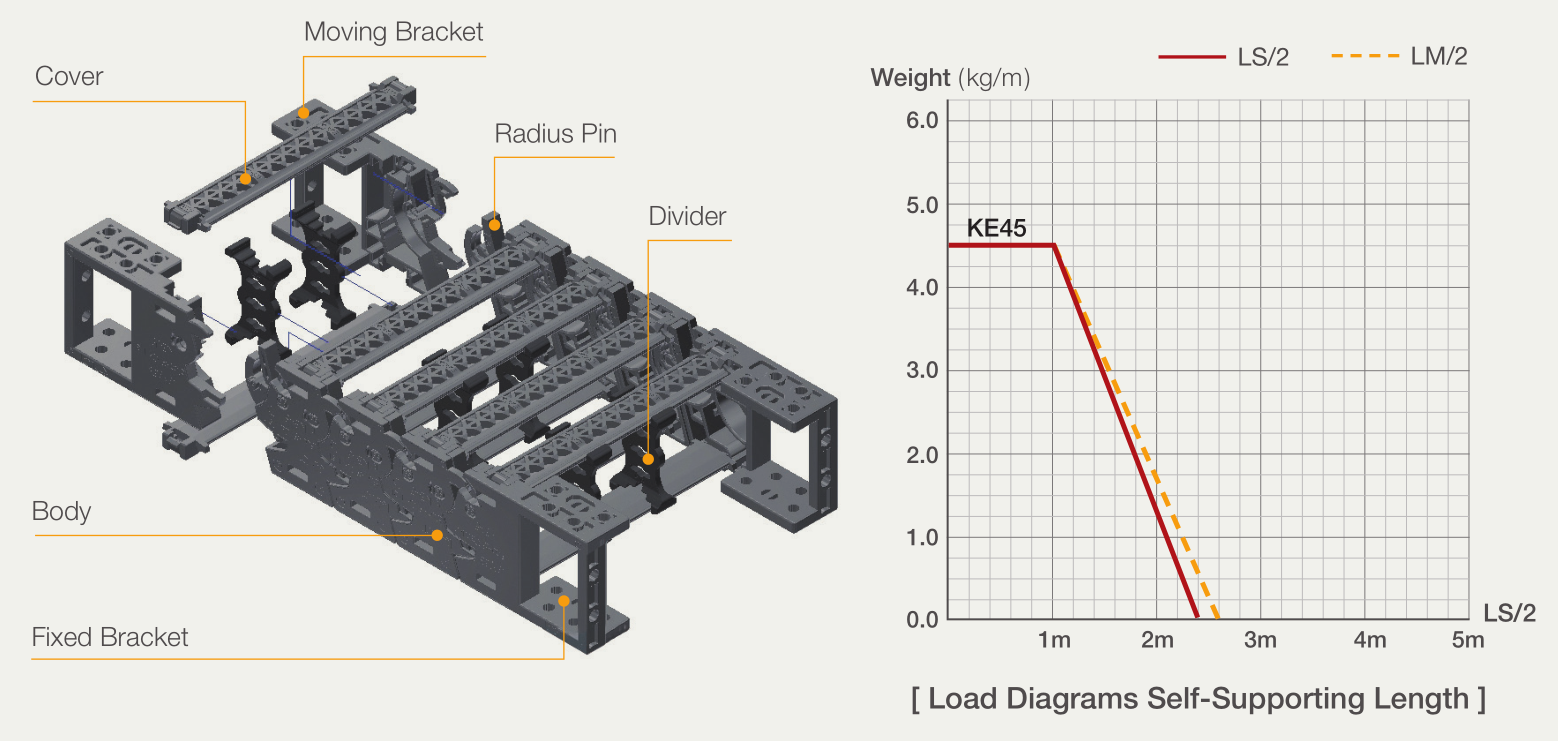

Structure:

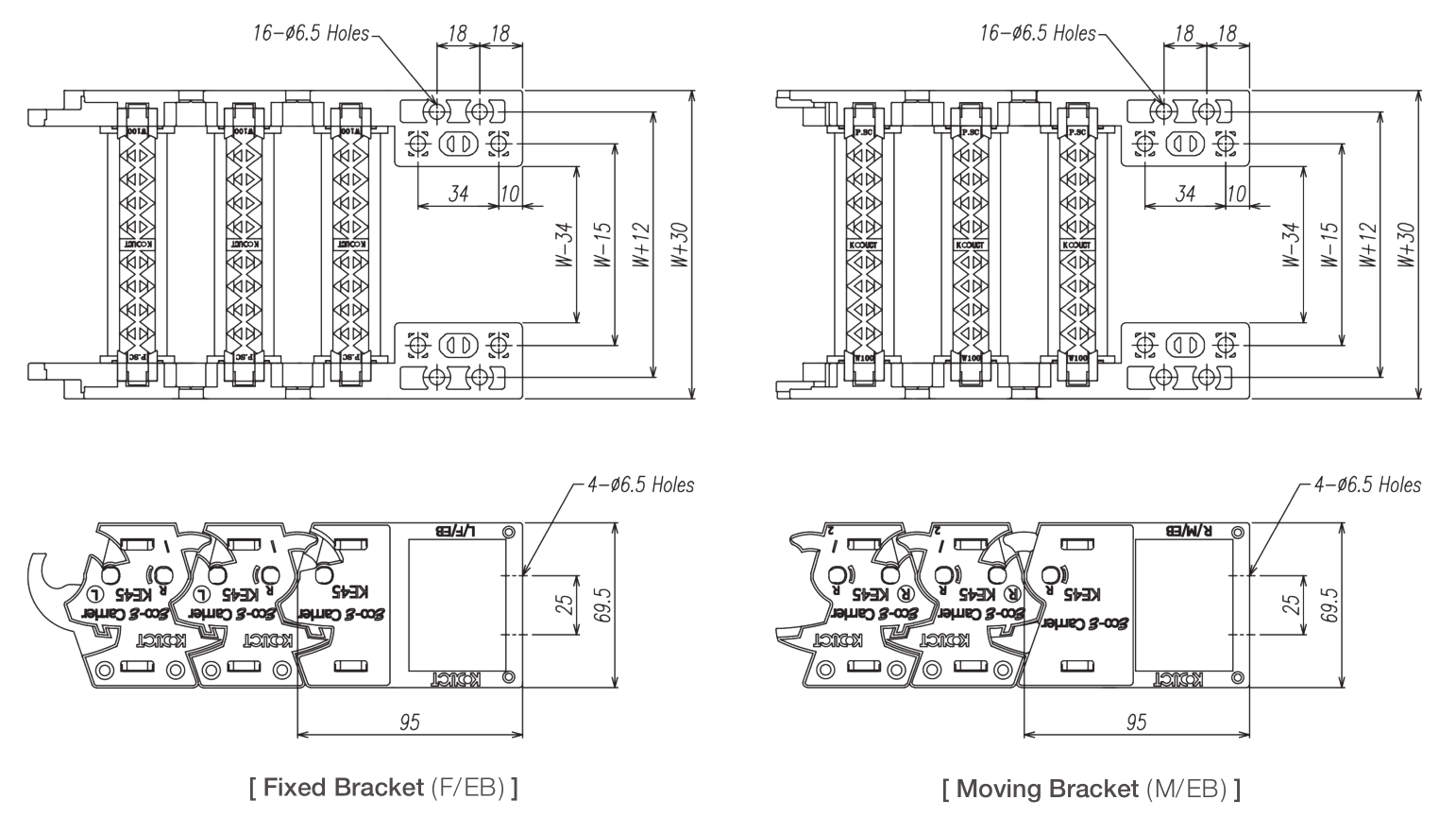

End BRACKET:

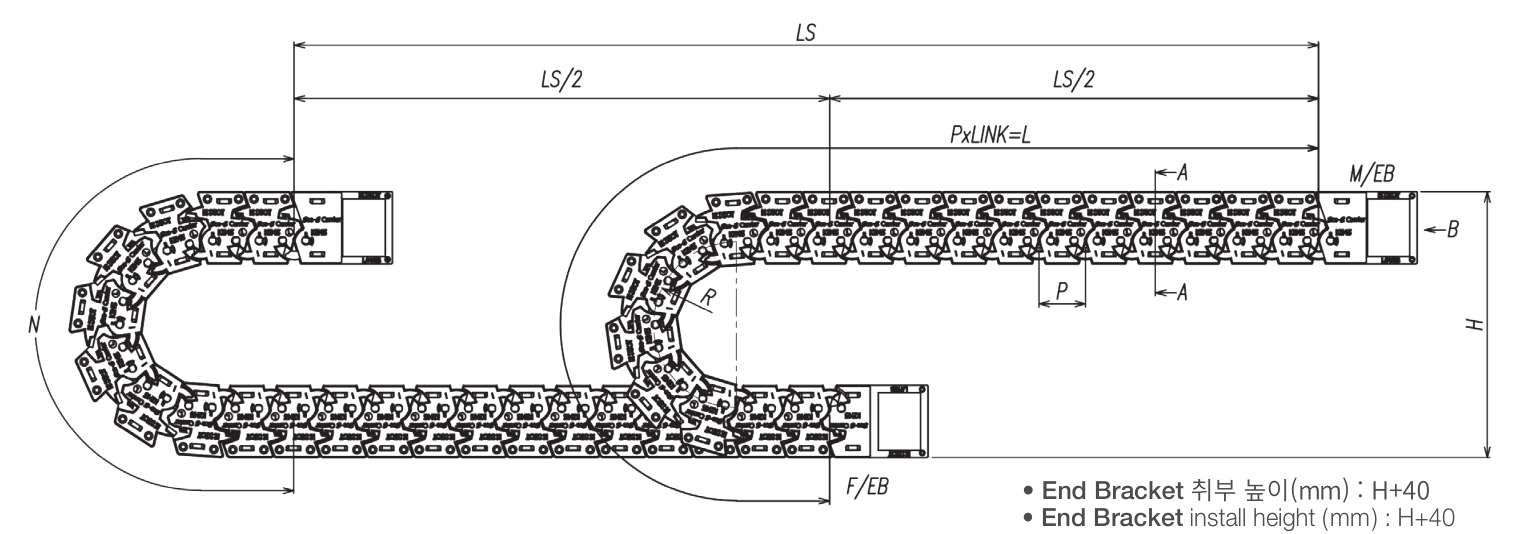

Carrier Link:

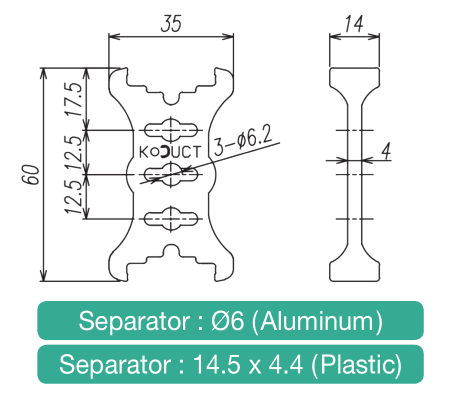

Section A-A:

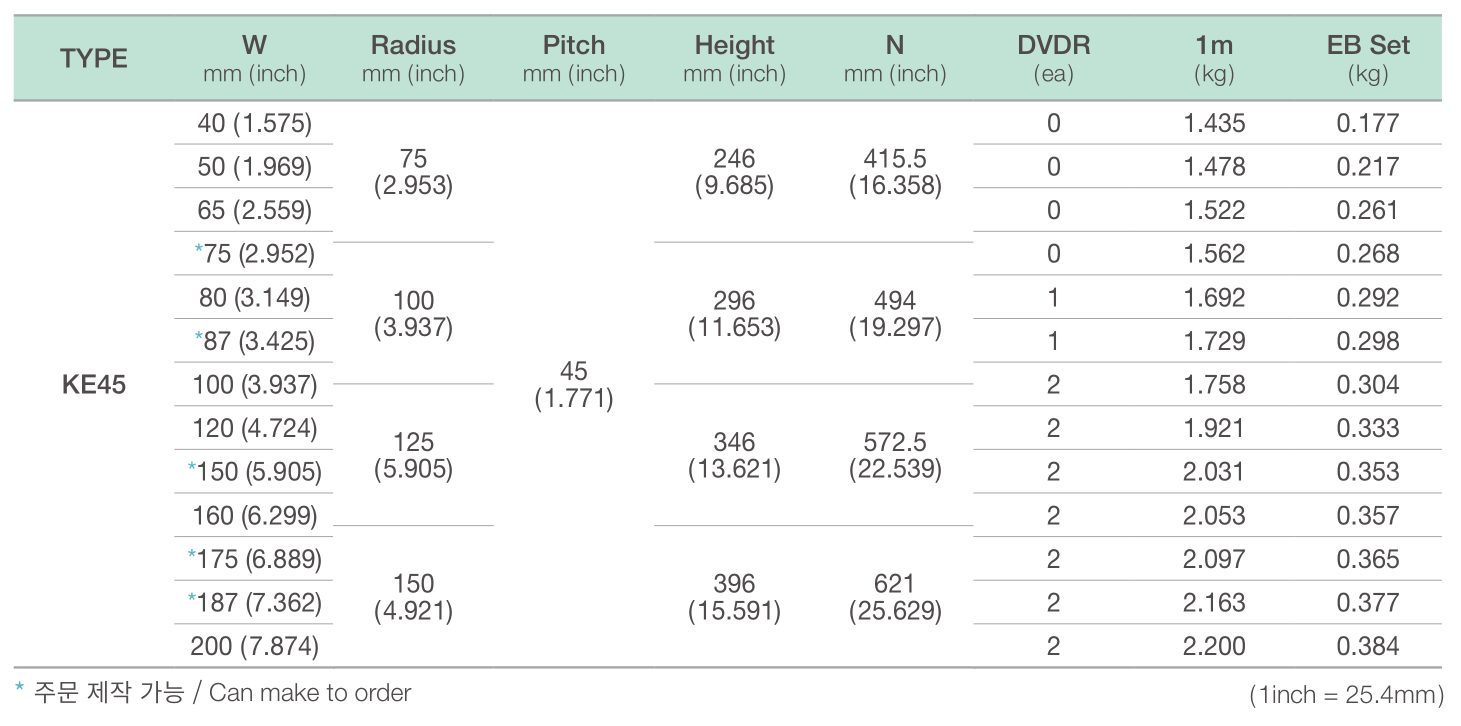

Specification:
