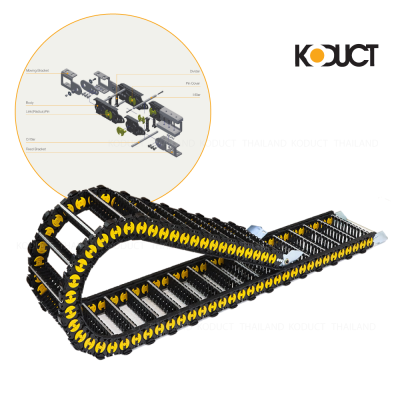

KHA92/S Hybrid Carrier
Hybrid Carrier : Light and durable, using engineering plastics with excellent impact strength. Long distance application reduces noise more than 10dB compared to the existing cable carriers. Due to its durable product structure, it rarely breaks when moving at high speeds, and its smooth operation makes it suitable for high-speed movement. In particular, it is designed to minimize noise caused by friction and vibration.
Hybrid carrier is designed to minimize friction noise by reducing the skates gap between links less than 2mm. Skate and body are all-in-one so No breakaway, and the combination of materials with excellent abrasion resistance reduces wear and improves durability. Ratio of cable entrances (internal height) decreased by 10% compared to other products and it make gentle the angle of curvature of cable carriers, thereby minimizing noise and cable distortion, reducing cable fatigue and increasing durability by more than 30%.
Applications : High-speed Gantry robot, Robot carriage etc

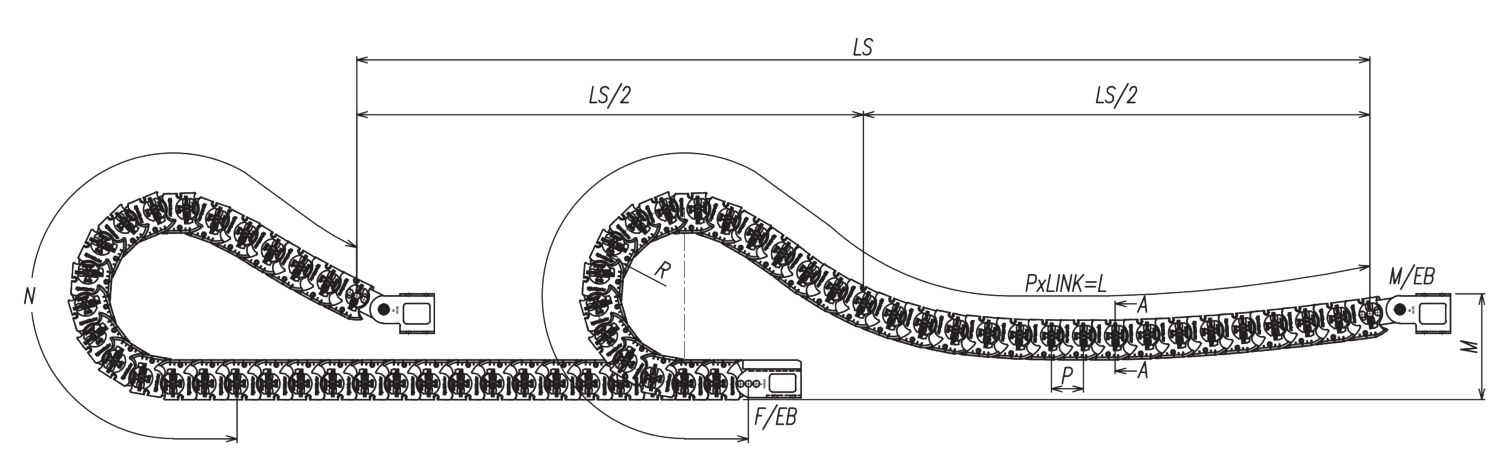

Structure:
End BRACKET :
Carrier Link :
Section A-A
Specification :
